Custom Counter Display Boxes and PDQ Trays
SKU: PD-01
Custom counter display boxes and PDQ trays present smaller products on counters, checkout areas or retail shelves.
The approved tray is built around the real product, display count, footprint, header, divider or tier layout, board direction, assembly, shipper function and flat-pack delivery.
- Product-fit layout
- PDQ structure review
- Header and artwork planning
- Flat-pack sample approval
What Is a Counter Display Box or PDQ Tray?
A counter display box is a compact retail tray that holds and presents an approved product assortment. A PDQ tray emphasizes quick setup and access, but the final structure may also include a header, divider, tier, auto-bottom or tear-away shipper function.
Key Facts for B2B Buyers
Product role
A compact retail display for an approved product count on a counter, checkout area or shelf.
Critical inputs
Product dimensions and weight, count, footprint, header, visibility, access, assembly and store workflow.
Design variables
Open tray, header, dividers, tiers, base, board direction, tear-away or shipper function, print and finish.
Approval focus
Product fit, load and stability, access, header visibility, crease and locks, assembly and flat-pack protection.
Project Specification Directions
| Product type | Custom counter display box, PDQ tray or compact retail POP display |
|---|---|
| Current SKU | PD-01 |
| Footprint and count | Defined from product dimensions, quantity, counter or shelf space, access and replenishment |
| Structure | Open tray, header-card tray, divider or tiered tray, auto-bottom or tear-away shipper direction |
| Board and support | Selected after product weight, tray span, divider layout, stack and route are known |
| Printing and finish | Artwork, header, folds, die-cut edges, lamination or other finish reviewed on the approved structure |
| Delivery format | Flat-packed or another approved setup with parts, instructions and protective master-carton packing |
| MOQ and timing | Confirmed by quotation after size, structure, artwork, sample scope, quantity, packing and destination are defined |
Counter Display Structure Options
| Direction | Best reviewed for | Approval focus |
|---|---|---|
| Open PDQ tray | Simple product access and compact shelf or counter placement | Product fit, front lip, footprint, load and replenishment |

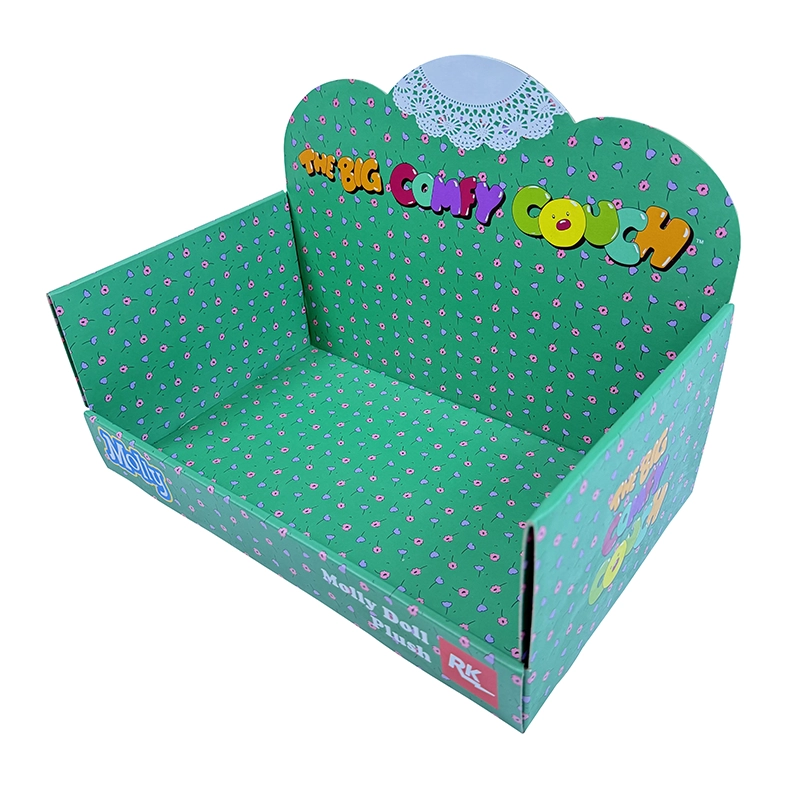

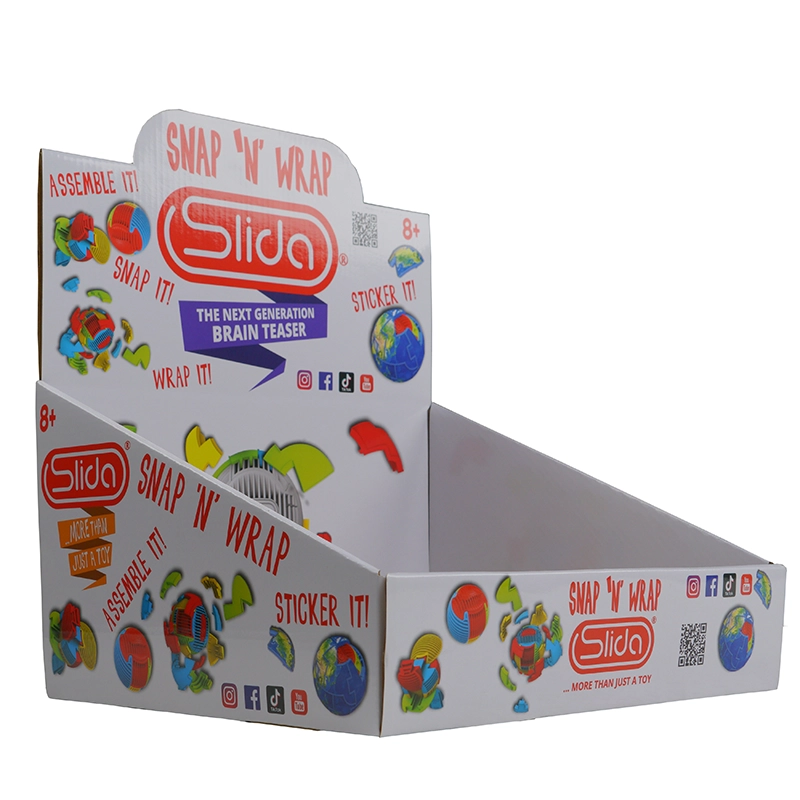

| Header-card tray | Added brand or campaign visibility | Header height, fold, artwork, bending and master-carton fit |
| Divider or tiered tray | Multiple rows, SKUs or improved product visibility | Divider fit, removal, retention, product count and loading sequence |
| Tear-away shipper display | Combined shipping and retail presentation | Perforation, opening sequence, transit protection and store setup |
Retail Footprint, Load and Artwork Planning
Counter Footprint
Confirm available width and depth, product projection, shopper access, neighboring fixtures and restocking space.
Product Load
Review unit weight, total count, center of gravity, divider support and representative handling with real products.
Header and Visibility
Set header height and shape around the shelf line, product view, artwork, fold and transport risk.
Crease and Lock Details
Approve glue zones, lock tabs, auto-bottom features, perforations and finished fold lines on a physical sample.
Is a Counter Display the Right Retail Format?
Good Candidates for Review
Small products, samples, cosmetics, accessories, snacks, supplements, stationery or other assortments that fit a compact approved footprint and load plan.
Review Another Structure When Needed
Large or unstable products, heavy loads without a support plan, persistent wet exposure, floor-level capacity needs or programs that cannot validate assembly and product fit.
Load, Finish and Retail-Use Boundaries
Do not publish a fixed load capacity, waterproof, scuff-proof, recycled-content, FSC or recyclability claim without the exact board, print, finish, structure, test and supporting documents. Product retention, header strength and shipper-to-display performance must be validated on the approved sample.
Sampling and Production Approval
- Define the assortment: provide product dimensions, weight, count, SKU mix, counter space and retail workflow.
- Select the structure: review tray, header, divider, tier, base, shipper function, board and assembly direction.
- Apply artwork: check header, front lip, side panels, folds, die cuts, SKU or campaign information and finishes.
- Approve the loaded sample: assemble it with real products and review fit, load, stability, access, visibility and flat-pack delivery.
- Release production: control the approved dieline, artwork, board reference, parts, pack count and destination marks.
Quality and Packing Checks
- Tray, header, divider and base dimensions against the approved dieline.
- Board reference, flute direction, die cut, crease, glue area, locks and perforations.
- Product count, fit, retention, access, representative load and stability.
- Print, color reference, header alignment, fold-line appearance and finish protection.
- Assembly sequence and tear-away or auto-bottom function where included.
- Flat-pack count, master carton, header and edge protection, SKU marks and destination packing.
What to Send for an RFQ
- Product dimensions and weight, units per display and SKU mix.
- Available counter or shelf footprint and desired header height.
- Open tray, divider, tier, auto-bottom or tear-away shipper direction.
- Artwork, print, finish and retail visibility requirements.
- Assembly, sample and representative load-test expectations.
- Quantity, flat-pack or other delivery format, packing and destination.
Frequently Asked Questions
What are custom counter display boxes used for?
They present smaller products at checkout counters, cash-wrap areas or retail shelves where a compact footprint, clear access and branded presentation are required.
What should be checked before approving a counter display sample?
Check product fit and count, footprint, header, dividers or tiers, representative load, stability, access, assembly, print, finish and flat-pack delivery with real products where possible.
What is the difference between a counter display and a PDQ tray?
PDQ describes a quick-setup retail tray direction. Counter displays are the broader product family and may include simple PDQ trays, headers, dividers, tiers, auto-bottoms or shipper-to-display structures.
How do I choose a corrugated board direction for a PDQ tray?
Choose it from product weight, tray span, footprint, divider support, print requirement, assembly and route. A flute name alone does not establish load capacity.
Can a counter display hold glass jars or bottles?
It may be reviewed when the real product weight, count, center of gravity, tray, divider, base and handling are known. Approve a representative loaded sample before release.
What is a tear-away shipper display?
It combines a shipping function with a retail presentation opened through controlled perforations or removable panels. Transit protection, opening sequence and store setup require sample approval.
How do I decide the header-card height?
Balance the shelf line, product visibility, campaign artwork, display footprint, fold direction, master-carton fit and bending risk.
Do I need dividers or tiered steps?
Use them when products need separation, upright retention, SKU organization or visibility behind the front row. The layout should be checked with the real products.
Do counter display boxes need assembly?
Many are supplied flat-packed, while some use pre-glued or auto-bottom features. The final setup method, parts, instructions and store workflow are project-specific.
Can litho-laminated displays crack on fold lines?
Heavy ink, lamination and tight folds can show stress. Crease geometry, board, print, finish, fold direction and the physical sample must be reviewed together.
How are counter displays packed for export?
Packing is defined from flat-pack size, header and die-cut protection, finish sensitivity, count, master carton, pallet needs, humidity exposure and destination handling.
What information is needed for a PDQ tray quote?
Send product size and weight, count, footprint, header, divider or tier needs, structure direction, artwork, sample scope, quantity, packing and destination.
Related Packaging Solutions and Guides
Start a Custom Counter Display Project
Send the product, display count, footprint, header and divider direction, artwork, assembly, quantity, packing and destination. HS PACKFACTORY will return a project-specific PDQ structure, sample and quotation scope.
