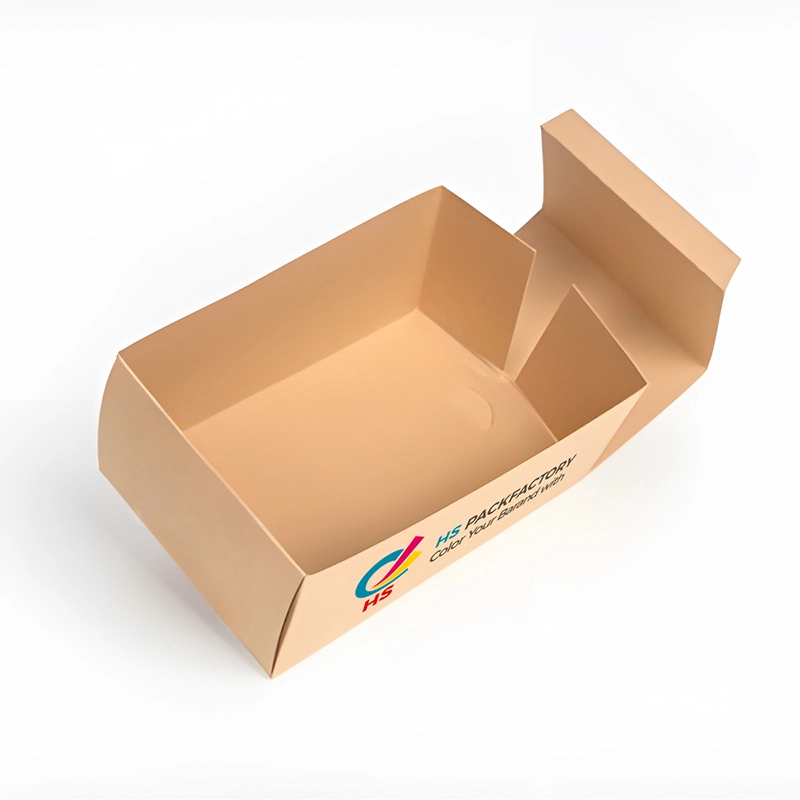

Custom Pinch Lock Trays for Glueless Retail Packaging
SKU: HS-FC032
Custom pinch lock trays are self-locking folding carton trays that use side wall tabs to pinch securely into matching base slots for glueless manual assembly.
This single-wall tray structure is material-efficient, flat-shipping friendly, and practical for lightweight to medium-weight products such as cosmetics, nail kits, skincare samples, medical vials, ampoules, stationery, small accessories, and gift sets.
- Project-specific structure
- Material and artwork review
- Sample approval
- Quotation-based supply
Quick Answer
Custom pinch lock trays are self-locking folding carton trays that use side wall tabs to pinch securely into matching base slots for glueless manual assembly.
Key Facts for B2B Buyers
Product role
Custom pinch lock trays are self-locking folding carton trays that use side wall tabs to pinch securely into matching base slots for glueless manual assembly.
Critical inputs
Product dimensions and weight, structure, material, artwork, quantity, packing workflow and destination.
Project boundary
No fixed performance, material, certification, environmental or commercial result is assumed before project review.
Approval focus
Fit, assembly, print, finish, packing, route and agreed evidence are confirmed on the approved sample.
Project Specification Directions
| Box Style | Pinch lock tray / self-locking tray / friction lock tray / glueless paperboard tray. |
|---|---|
| Construction | Single-wall side panels with friction-locking tabs and matching base slots. |
| Assembly Method | Manual friction lock assembly without factory glue. |
| Material Options | Material grade, dimensions and performance direction are selected from the approved product, structure, print, packing and route requirements. |
| Configuration | Standalone open tray, inner tray for a printed sleeve, clear lid presentation tray, or tray with custom insert. |
| Printing Options | CMYK offset printing, Pantone spot color, inside printing, outside printing, logo printing, barcode area, and QR code area. |
| Structural Pairings | Custom paper sleeve, clear PET lid, die-cut paper insert, EVA foam insert, molded pulp insert, or paperboard separator. |
| Finishing Options | Matte lamination, gloss lamination, soft-touch lamination, foil stamping, embossing, debossing, Spot UV, and textured paper when suitable. |
| MOQ and timing | Confirmed by quotation after specifications, materials, artwork, quantity, packing and destination are defined |
Planning and Customization Review
Structural Pairings
Build a complete tray system for retail display, sample kits, or drawer-style packaging.
Structural Pairings
Build a complete tray system for retail display, sample kits, or drawer-style packaging.
Premium Finishes
Improve the tray interior, brand presentation, and tactile feel.
Cosmetics and Nail Kits
Suitable for nail polish bottles, beauty samples, makeup tools, skincare mini sets, and cosmetic promotional kits when product weight and insert fit are tested.
For a tray designed as part of a sliding sleeve system, review custom tray and sleeve packaging.
Is This Direction Right for Your Project?
Good Candidates for Review
Products with defined support, retention, removal, outer-box fit and packing requirements.
Review Another Direction When Needed
Projects lacking a stable product reference, support plan, material route or representative approval sample.
Material, Performance and Claim Boundaries
No material, environmental, food-contact, barrier, load, adhesion or route performance is assumed from the product name alone. The selected construction, supplier evidence, sample, test scope and destination requirements must be confirmed for the project.
Artwork, Sampling and Production Approval
- Define the pack: Send product, size, weight, orientation, artwork, quantity, packing and destination.
- Confirm the direction: Review structure, materials, print, finish and evidence requirements.
- Approve files: Confirm dieline, artwork placement, copy, color and production notes.
- Approve the sample: Check fit, assembly, appearance, packing and the agreed test scope.
- Release production: Confirm quotation, approved references, QC points, packing and shipment.
Quality and Packing Checks
- Dimensions, fit, orientation and assembly against the approved sample
- Material, structure, print, color and finish against approved references
- Edges, folds, seams, locks, adhesive or retention features where applicable
- Product loading, removal, pack-out and handling workflow
- Unit packing, carton count, pallet direction and route protection
- Required documents and agreed evidence scope before shipment
What to Send for an RFQ
- Product dimensions, weight, photos or drawings
- Required structure, use, opening, loading and packing workflow
- Material, print, finish, insert, window or accessory direction
- Artwork files and any market, evidence or test requirements
- Quantity, unit packing, carton or pallet expectations
- Destination, schedule target and sample approval needs
Frequently Asked Questions
What should be checked before approving a custom pinch lock tray sample?
Buyers should check product size, product weight, tray length, tray width, tray depth, side wall height, paperboard GSM, paperboard caliper, tab size, slot width, lock tolerance, crease depth, insert requirement, insert height, sleeve clearance, clear lid fit, product loading direction, inside printing, outside printing, barcode or QR code position, surface finish, material requirements, flat-packed quantity, carton packing method, and destination country.
Does a pinch lock tray need glue?
No. A pinch lock tray is designed for glueless manual assembly.
What is the difference between a pinch lock tray and a simplex tray?
A pinch lock tray usually has single-wall side panels, which makes it lighter and more material-efficient.
What products are custom pinch lock trays best for?
Custom pinch lock trays are best for lightweight to medium-weight products such as cosmetics, nail polish sets, skincare samples, medical vials, ampoules, stationery, pens, small accessories, gift sets, and promotional kits.
What products are not suitable for pinch lock trays?
Pinch lock trays are usually not suitable for heavy glass jars, large candles, metal parts, sharp products without insert protection, products requiring high stacking strength, or rough e-commerce shipping without an outer carton.
How much weight can a pinch lock tray hold?
The suitable load depends on tray size, tray depth, side wall height, product weight, paperboard thickness, tab size, slot width, insert support, and handling method.
How tight should the locking tabs be?
The tabs should be tight enough to hold the side walls, but not so tight that workers must force the tray together or tear the tabs.
How do I choose the right paperboard GSM and caliper?
Paperboard GSM and caliper should be selected based on product weight, tray depth, tab size, slot width, crease depth, and surface finishing.
Can pinch lock trays be paired with sleeves, clear lids, or inserts?
Yes. Pinch lock trays are often paired with printed paper sleeves, clear PET lids, paperboard inserts, EVA foam inserts, molded pulp inserts, or mixed-material inserts.
How should sleeve clearance be tested?
Sleeve clearance should be tested with the finished tray, insert, and product inside, not only with a flat dieline.
Can pinch lock trays be used for cosmetics, food, or medical vials?
Yes, they can be used as secondary packaging or presentation trays for cosmetics, food samples, medical vials, or ampoules when the material requirement is reviewed properly.
Can I print inside the tray?
Yes. Inside printing can be used for branding, instructions, QR codes, product placement guides, color blocks, or welcome messages.
How are pinch lock trays packed for export?
Pinch lock trays are usually packed flat to reduce storage volume and shipping cost.
Can FSC-related paper and material documents be checked?
Documentation or certification scope must be confirmed for the selected material, supplier, production route, intended use and destination.
What information do you need for a quote?
Please send your product size, product weight, tray depth, sleeve or lid requirement, insert need, artwork file, quantity, packing method, and delivery country.
